Networks

Manage Docker networks in Arcane, including topology and ports views.

  1. Open Networks and click Create Network.
  2. Enter a name.
  3. Optional: pick a driver (bridge, overlay, etc.) and set subnet, gateway, and advanced options. IP Range limits container addresses to a CIDR range, such as 172.20.0.128/25 within a 172.20.0.0/24 subnet.
  4. Click Create.

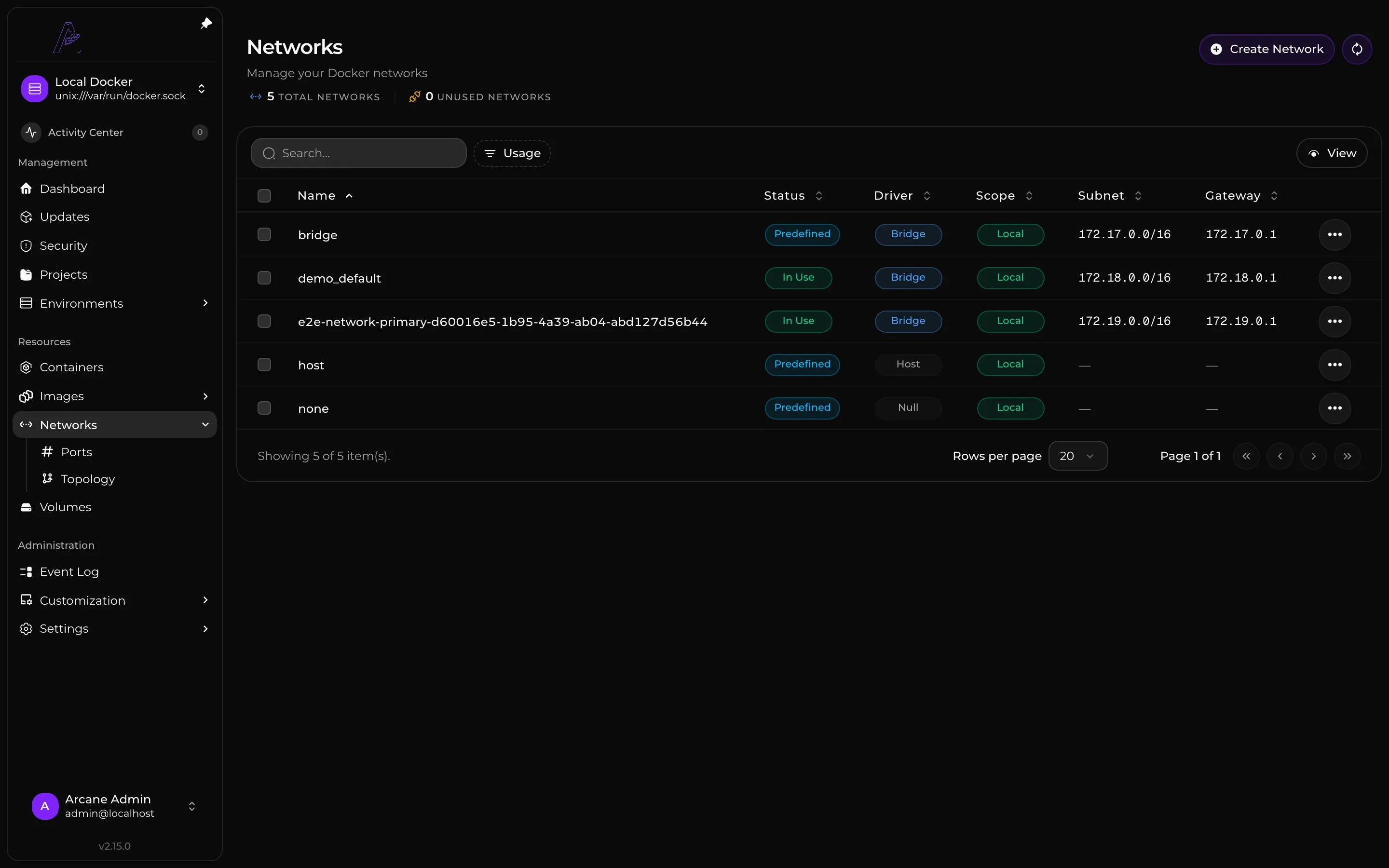

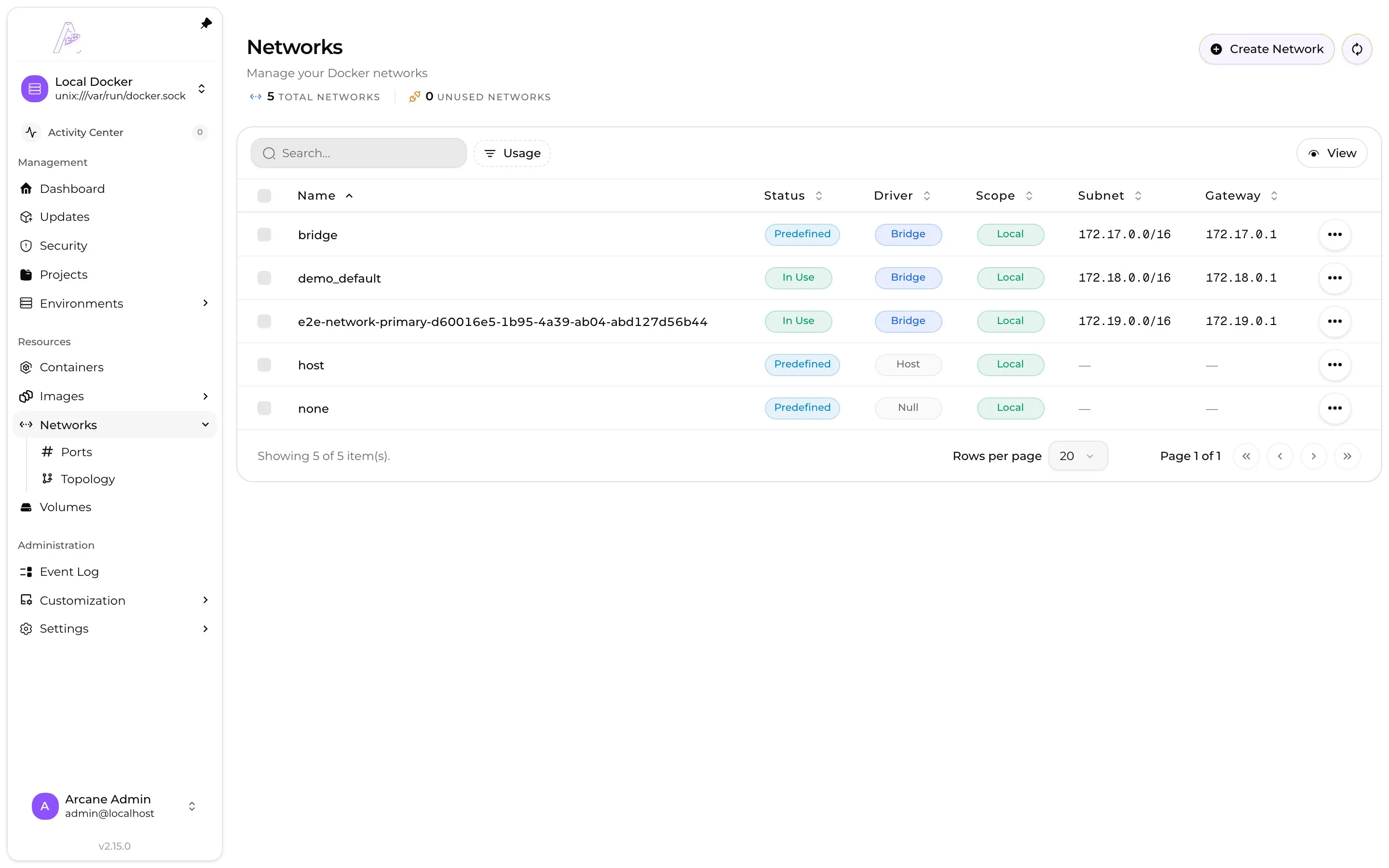

Open Networks in the sidebar. The table shows each network’s name, driver, subnet, and gateway.

Application networks next to Docker's predefined networks.
Docker networks with driver, scope, and usage status.Docker networks with driver, scope, and usage status.

Application networks next to Docker's predefined networks.

Click a network’s name. You see its ID, driver, subnet, gateway, and attached containers with their IPv4 and IPv6 addresses.

  1. Open the row’s dropdown and click the trash icon.
  2. Confirm.

Networks used by containers can’t be removed. Docker’s defaults (bridge, host, none) can never be removed.

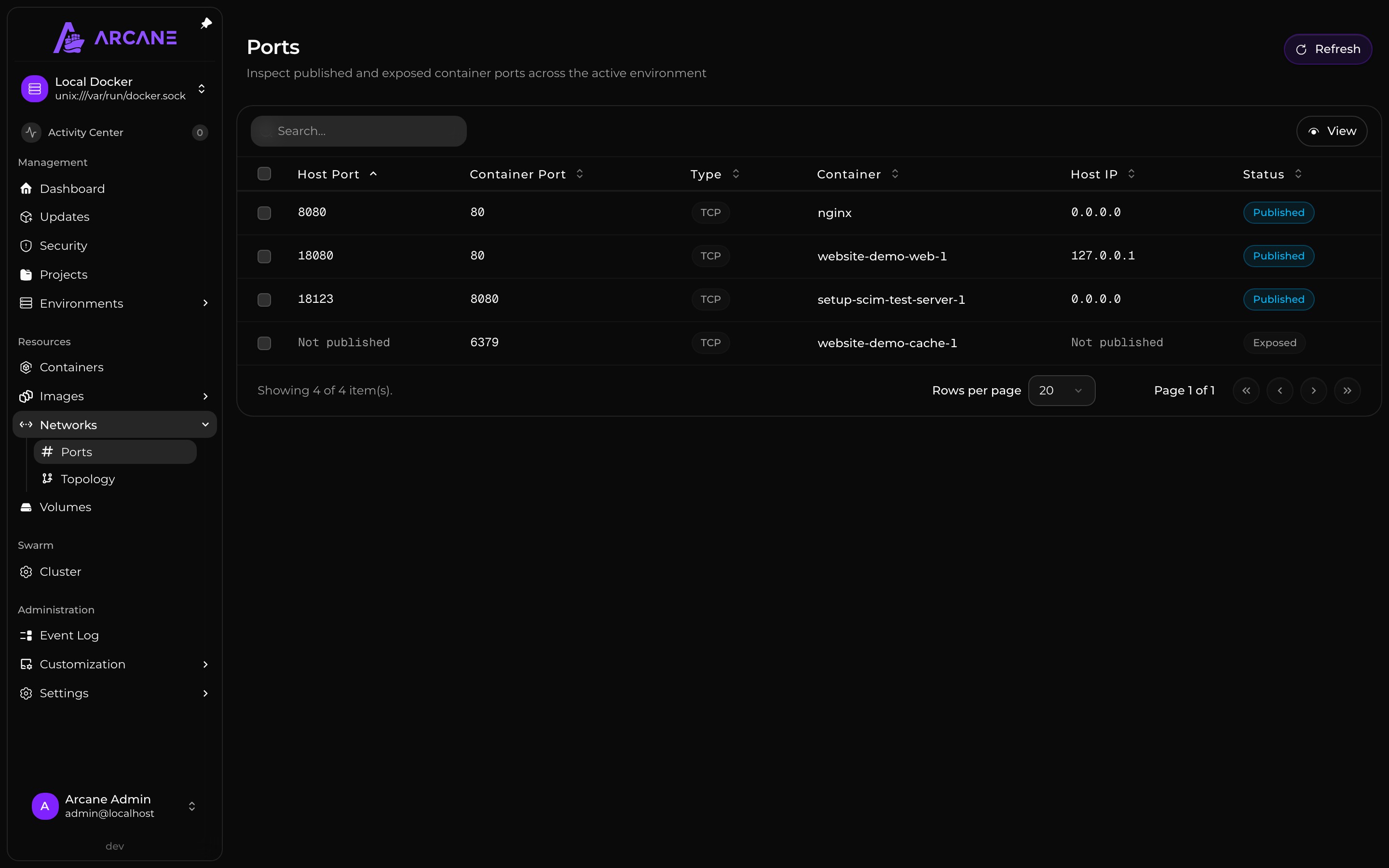

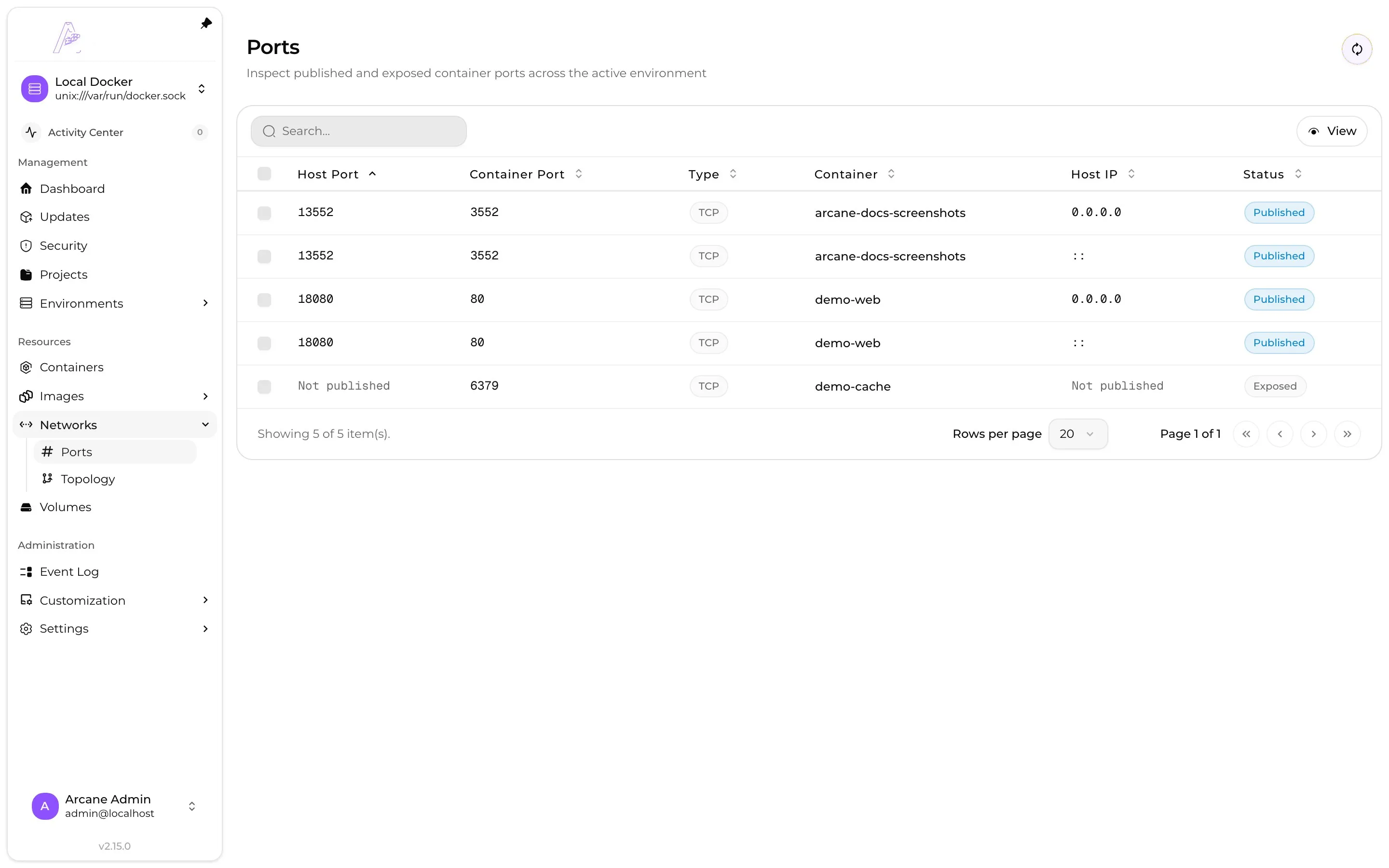

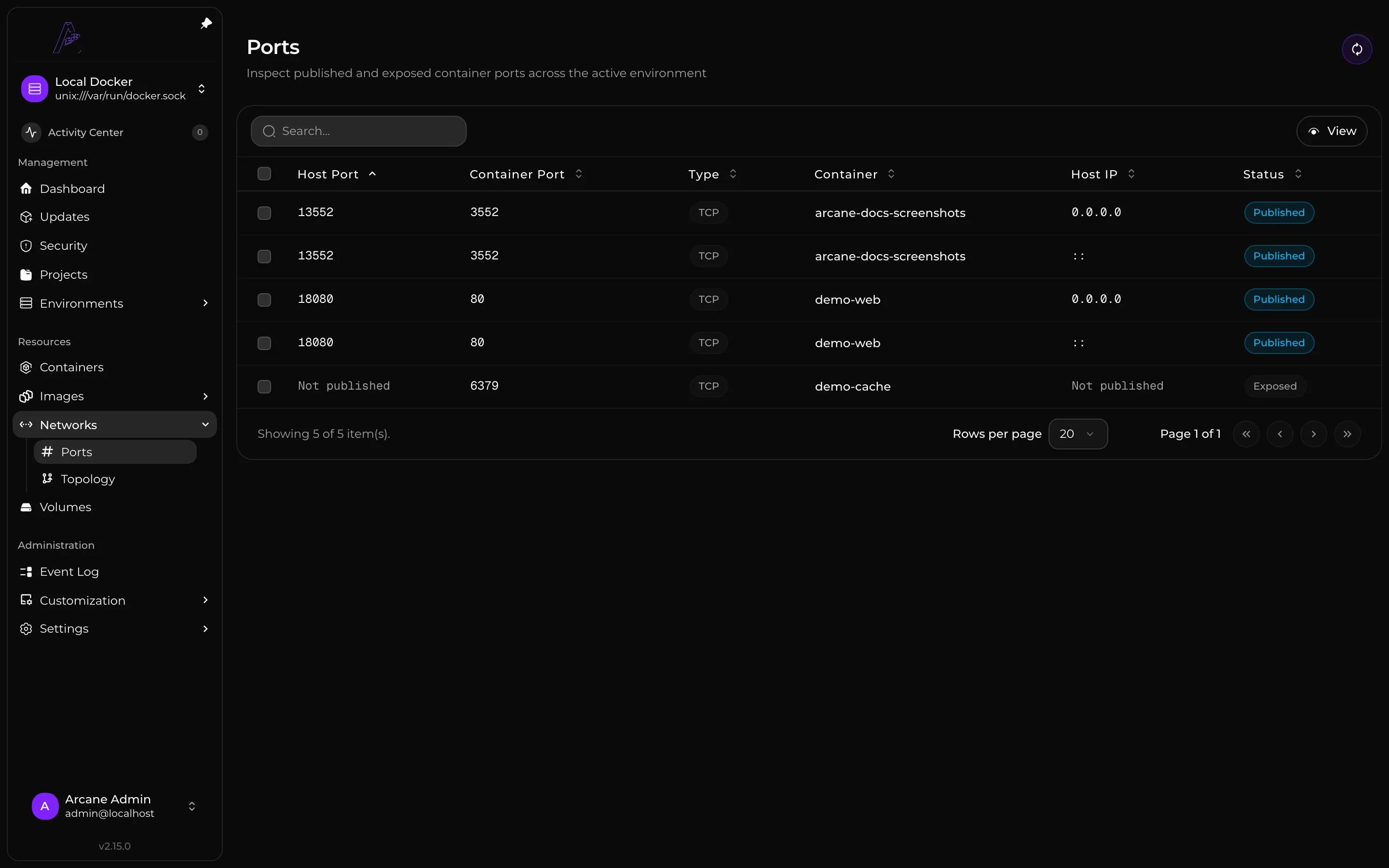

Open Ports from the Networks area. It shows:

  • Ports published to the host.
  • Containers that expose ports without publishing them.
  • Which host:port combinations are taken.

Search, sort, and page through every port on the agent.

Container ports published to the host.
Published and exposed container ports in Arcane.Published and exposed container ports in Arcane.

Container ports published to the host.

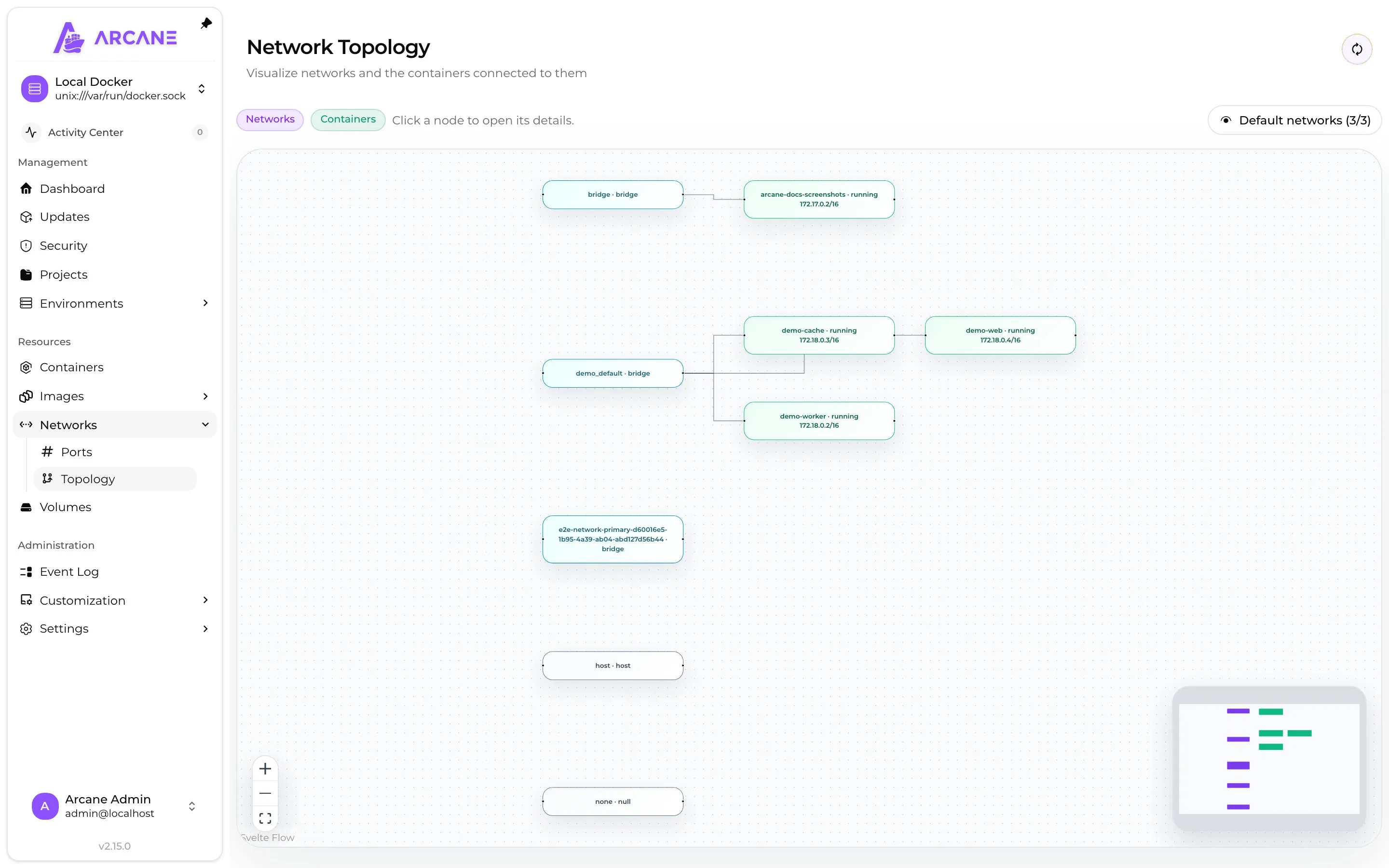

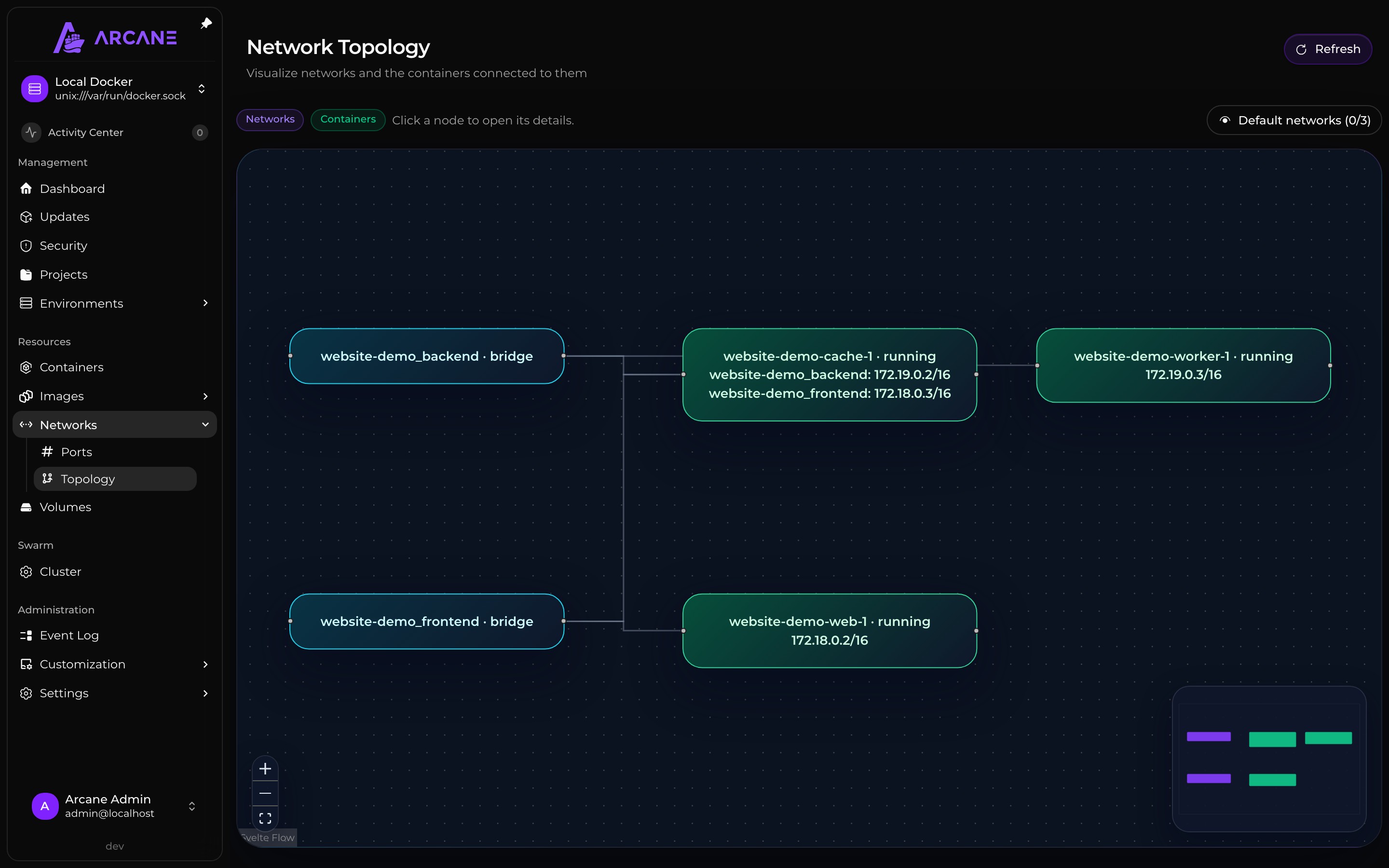

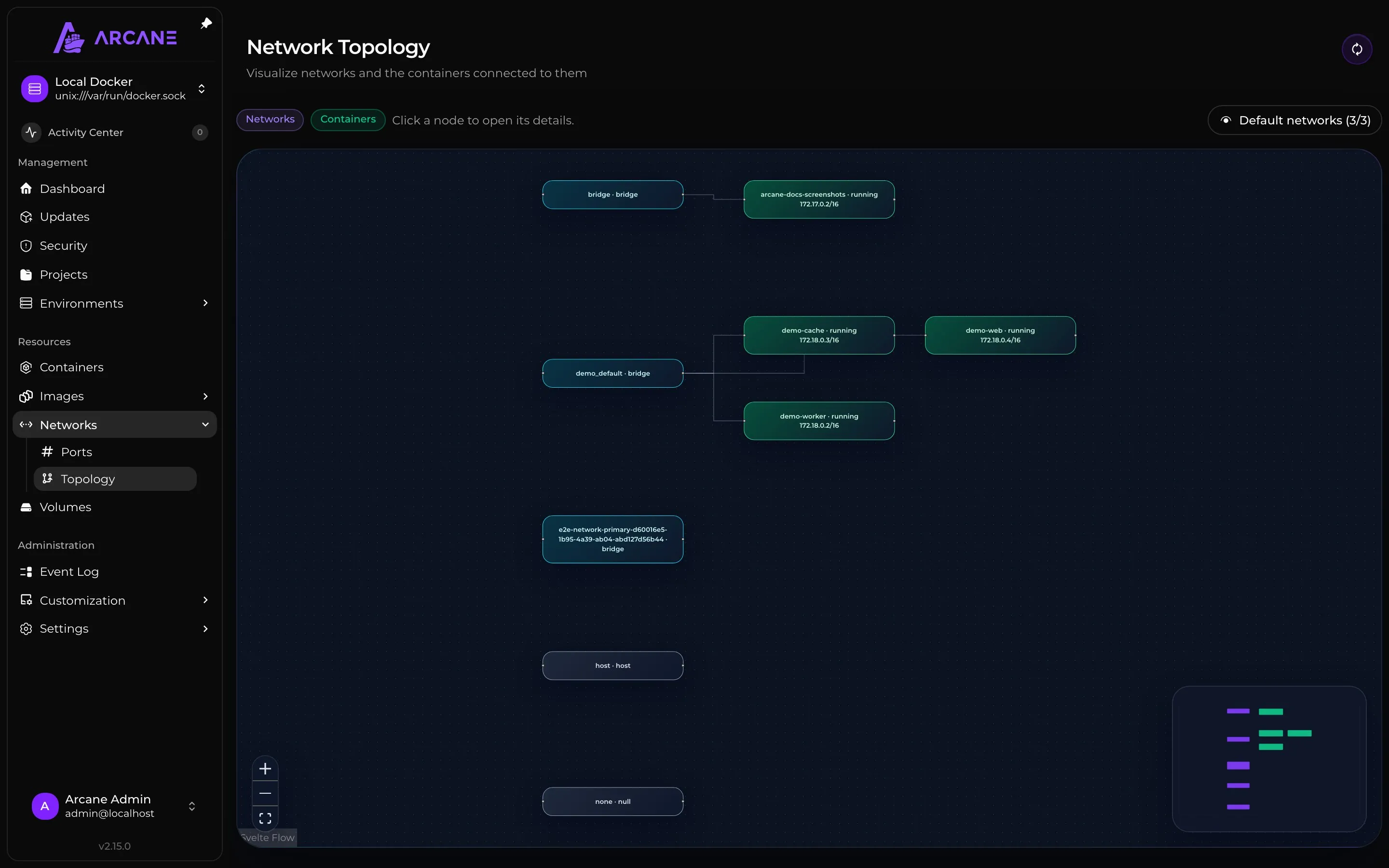

Open Topology for an interactive graph of Docker networks and their attached containers.

Connections between application containers and Docker networks.
A topology graph linking web, cache, and worker containers to their networks.A topology graph linking web, cache, and worker containers to their networks.

Connections between application containers and Docker networks.

For Docker networking concepts, see the Docker networking docs.
