Volumes
Create, rename, edit, back up, and remove Docker volumes.
Docker volumes hold data that outlives a container, such as databases and uploads.
Create a volume
Section titled “Create a volume”- Open Volumes and click Create Volume.
- Enter a name.
- Optional: pick a driver or add labels.
- Click Create.

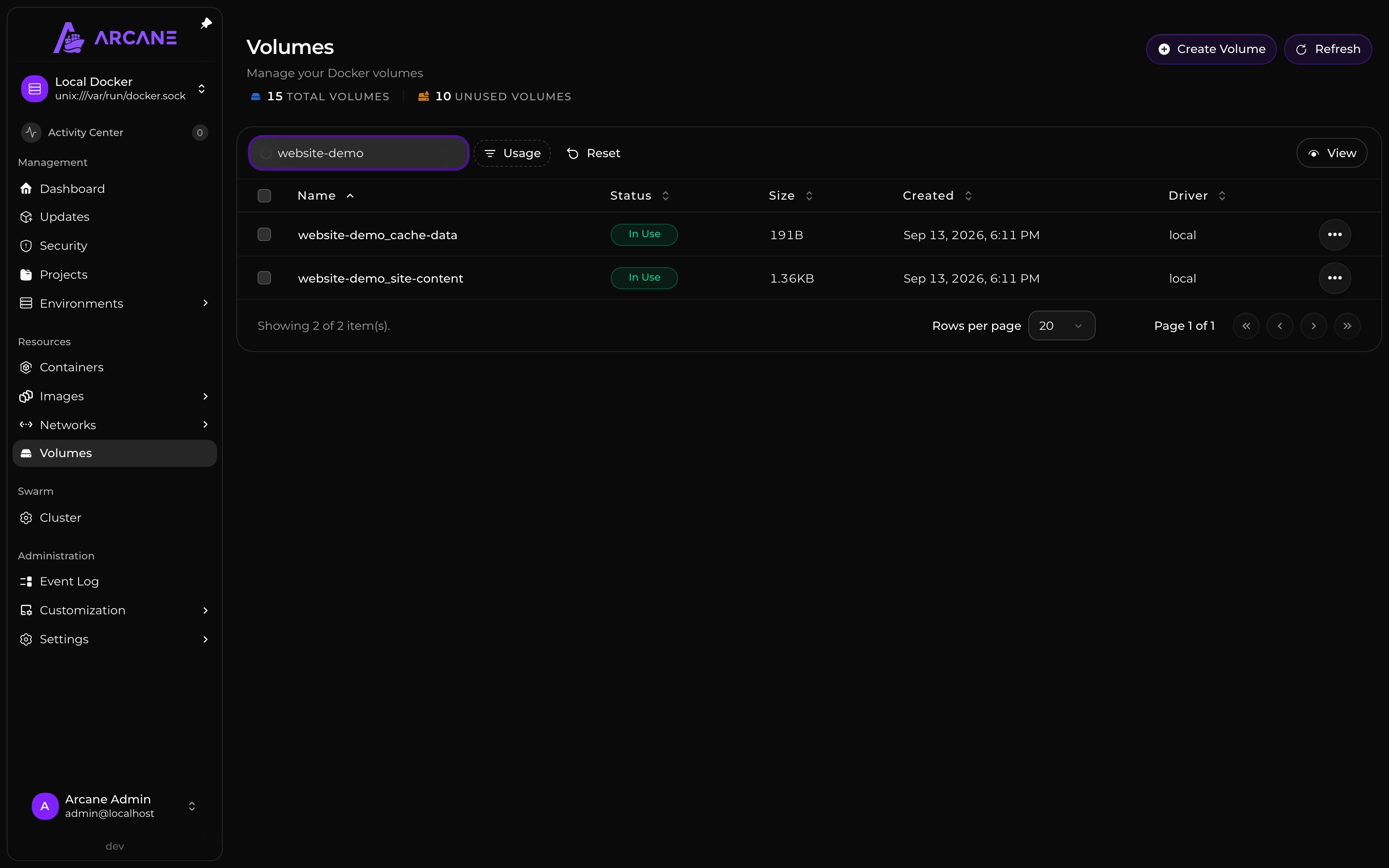

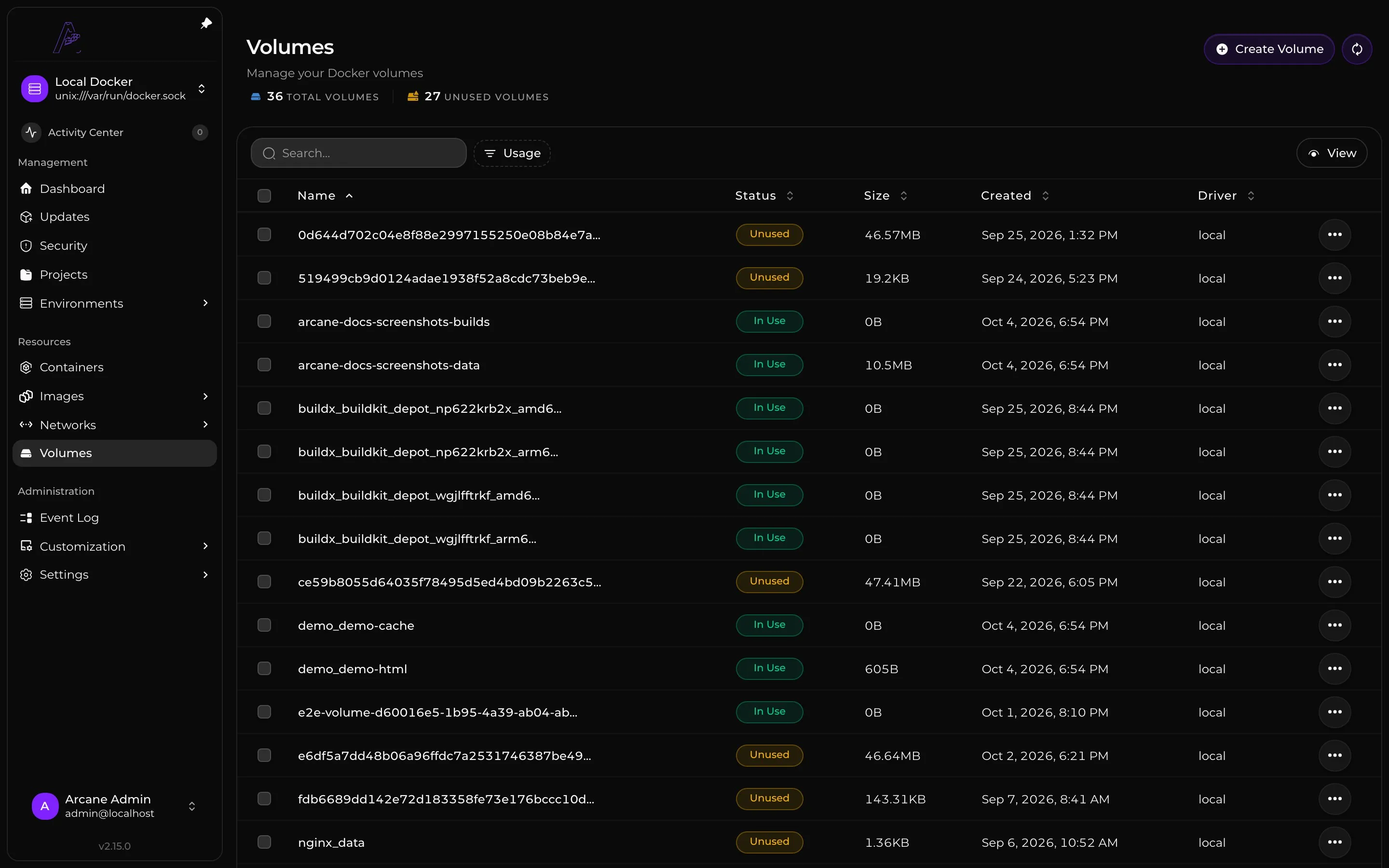

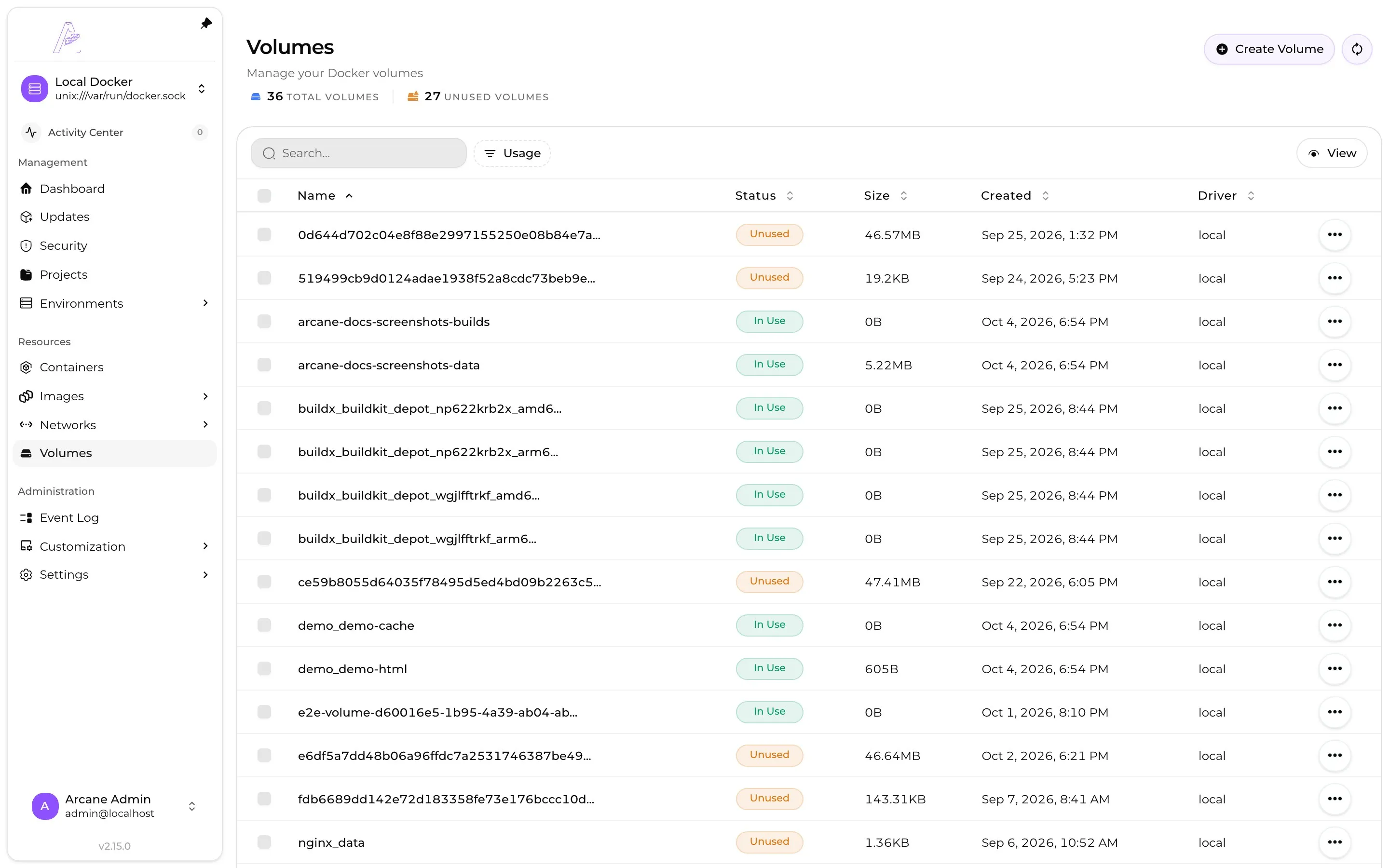

Browse volumes
Section titled “Browse volumes”Open Volumes in the sidebar. The table shows each volume’s name, driver, and current usage.
Rename a volume
Section titled “Rename a volume”- Make sure no container is using the volume.
- Open the row’s dropdown and choose rename.
- Enter the new name. Arcane copies the data to a volume with that name, then removes the original.
Remove a volume
Section titled “Remove a volume”- Open the row’s dropdown and click the trash icon.
- Confirm.
Volumes used by a container can’t be removed.

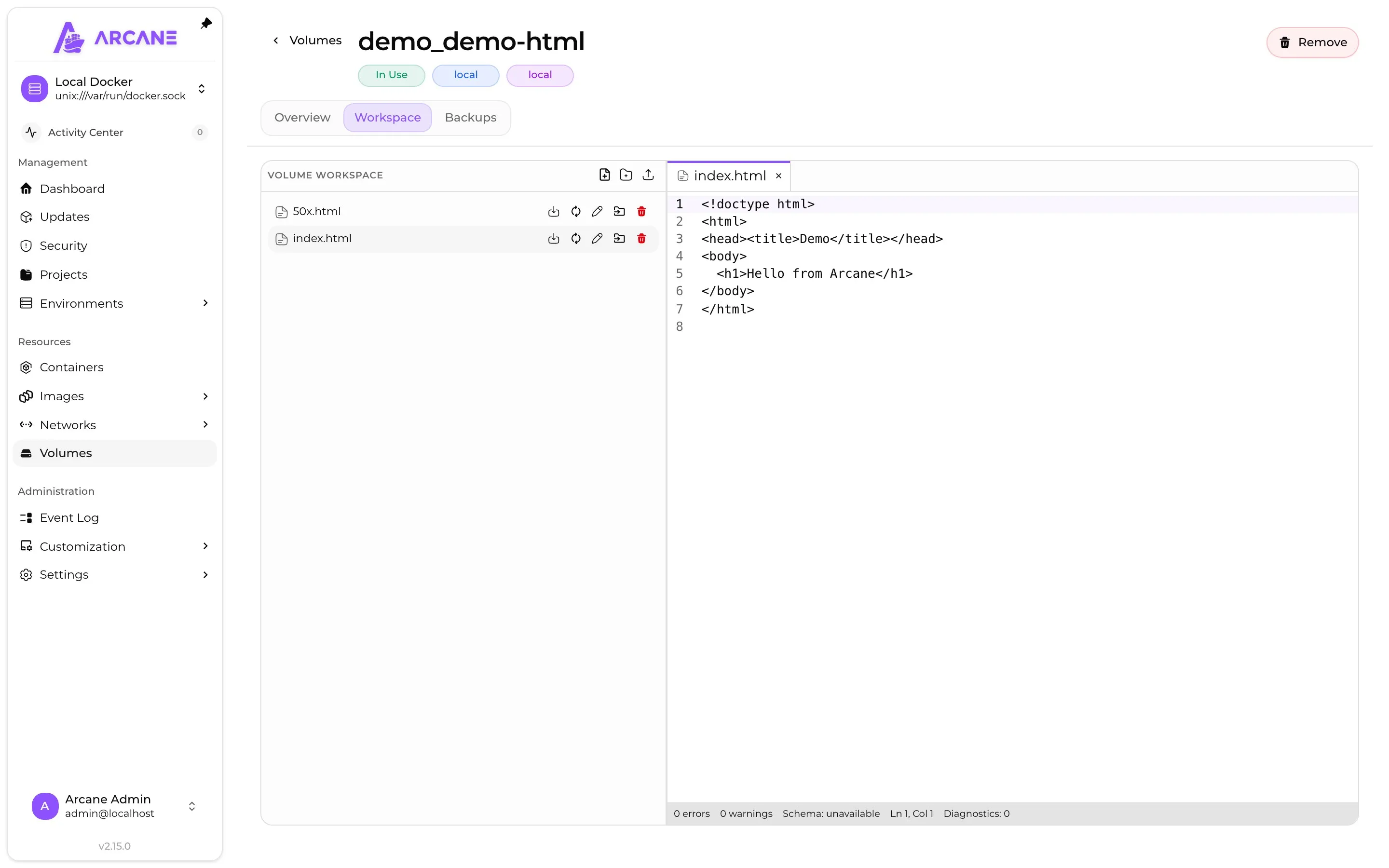

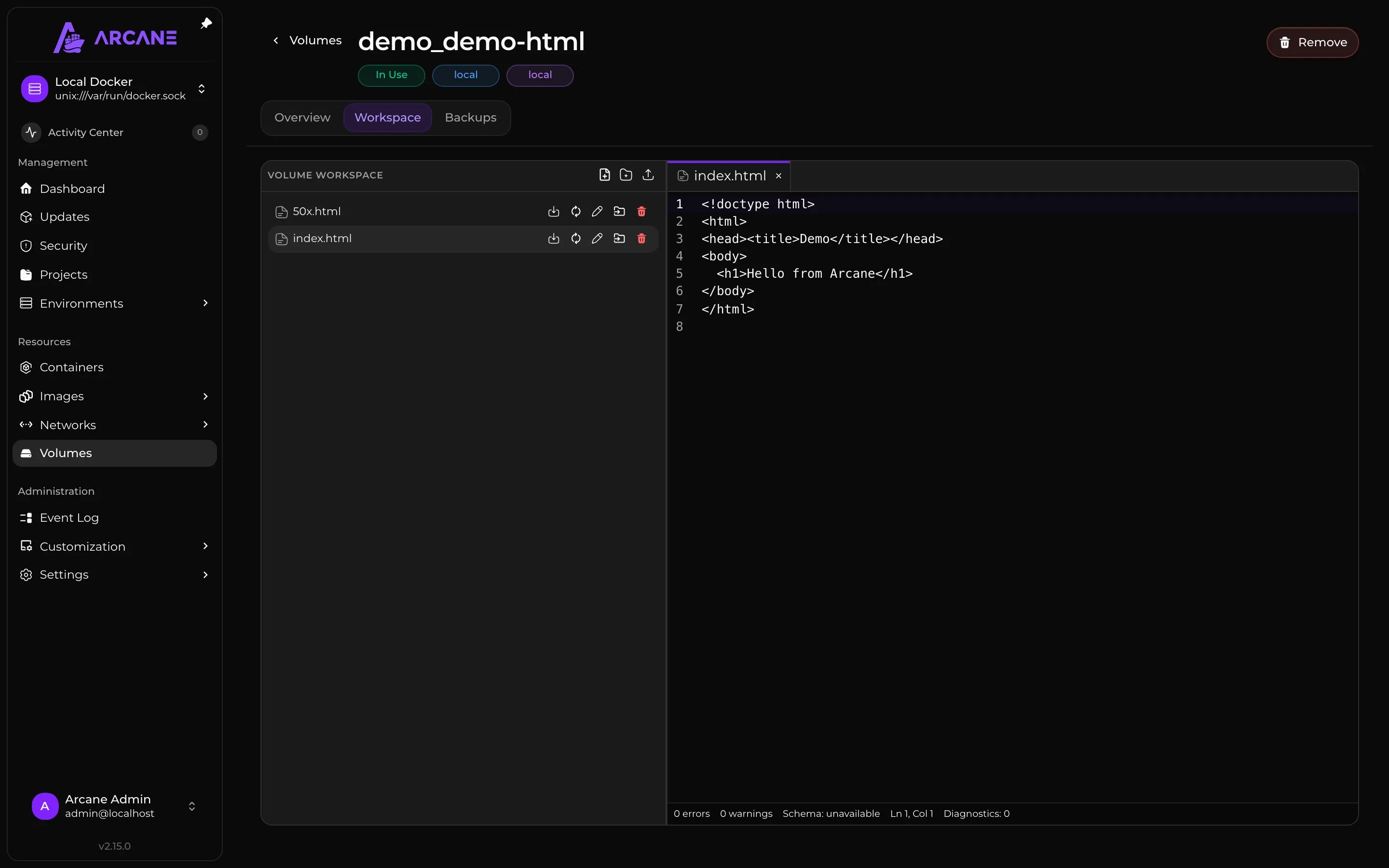

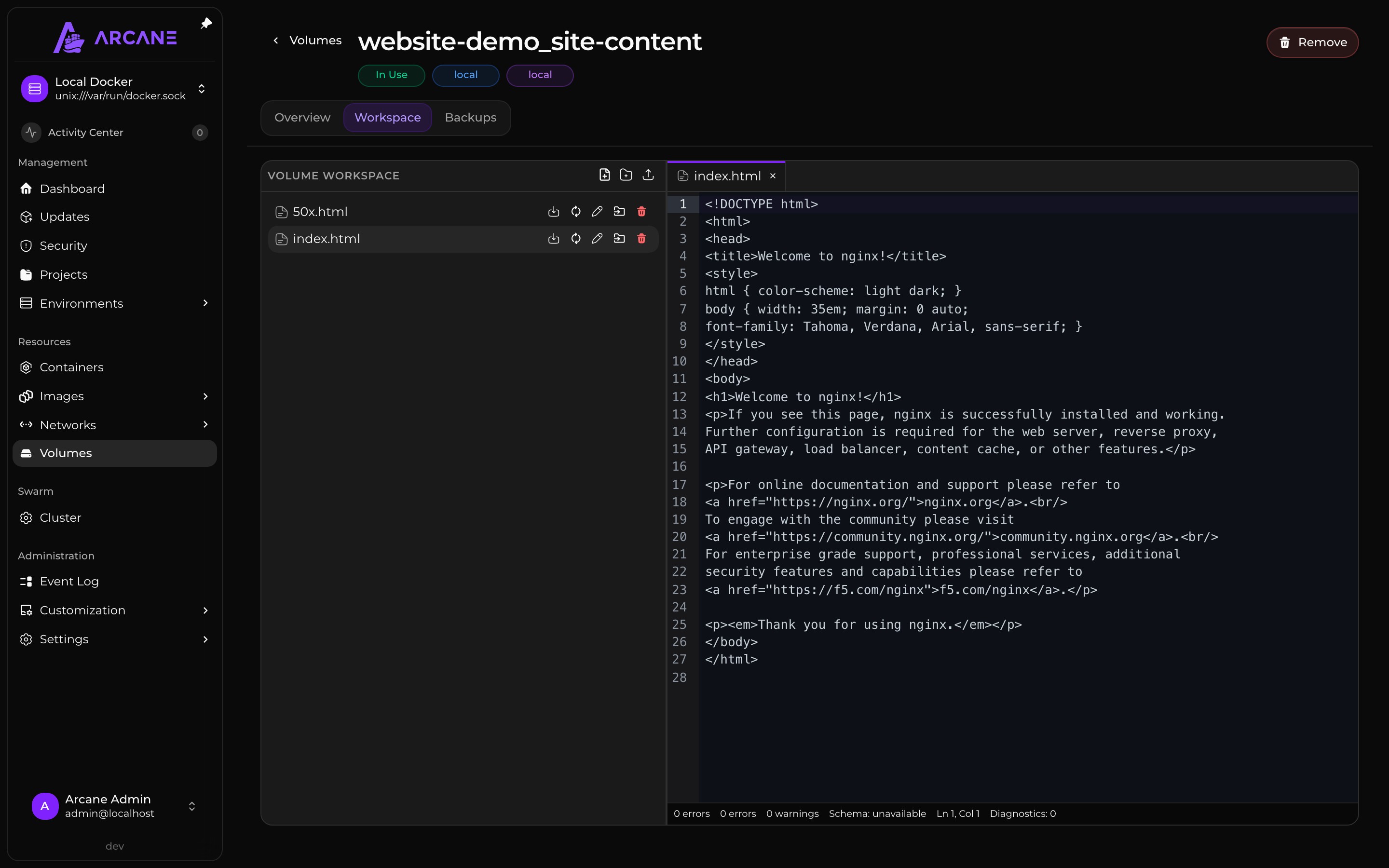

Volume Workspace
Section titled “Volume Workspace”The workspace lets you work with a volume’s files while containers keep running.
- Open a volume’s Workspace.
- Edit, add, or move files (see the table below).
- Click Save. Edits are staged locally and applied together.
If a file you edited changed in the volume since you opened it, the save is rejected. Refresh, then reapply your edits.
| Action | What it does |
|---|---|
| Open a file | Edit any UTF-8 text file in a tab. |
| New File / New Folder | Create files and folders anywhere in the volume. |
| Upload Files | Add files from your computer. Asks before replacing existing ones. |
| Download | Save any file, including binary files, to your computer. |
| Rename, Move, Delete | Reorganize the contents. |
| Restore a file | Restore a single file from an existing volume backup. |
Limits:
- Binary files, symlinks, and special files are read-only in the editor. Binary files can still be uploaded, downloaded, and moved.
- Files over the maximum size (default 10 MiB) can’t be edited in place.
- The tree loads a folder’s contents when you open it. A folder with more entries than the entry limit shows only its first entries. The workspace tells you when that happens.
- Volumes with a custom mount configuration (bind-style driver options) can’t be opened in the workspace.
- If the container sets a numeric
user:, workspace writes use that user and group instead of root.
Set the limits on the Arcane container:
| Variable | Default |
|---|---|
ARCANE_VOLUME_WORKSPACE_MAX_FILE_SIZE_MB |
10 |
ARCANE_VOLUME_WORKSPACE_MAX_ENTRIES |
10000 |
Browsing and downloading need volumes:read. For write actions, see the permission catalog.
Back up and restore
Section titled “Back up and restore”Open a volume’s Backups to create or schedule snapshots on local storage or S3, or to restore data.
- Backups covers setup and recovery.
- System-managed volume backups covers scheduling several volumes together.
Helper containers
Section titled “Helper containers”Arcane creates helper containers for backup, restore, and workspace access.
- They carry the label
com.getarcaneapp.internal.resource=trueand are hidden from the Containers list by default. To see them, turn on Show Internal Containers in the container table’s view options. - Backups and restores run in short-lived containers using Rustic, the backup tool behind Backups.
- The workspace helper keeps the volume mounted between operations, so it doesn’t restart each time you browse.
- Arcane removes the workspace helper after the Volume Helper Idle Timeout (default 10 minutes). Set it to
0to turn off idle cleanup.
